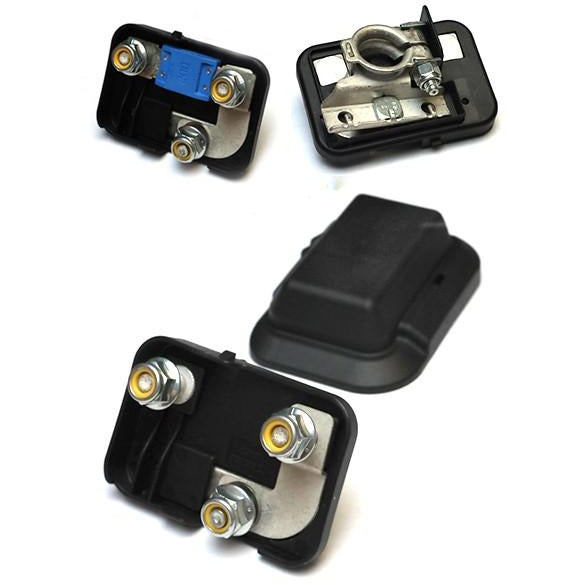

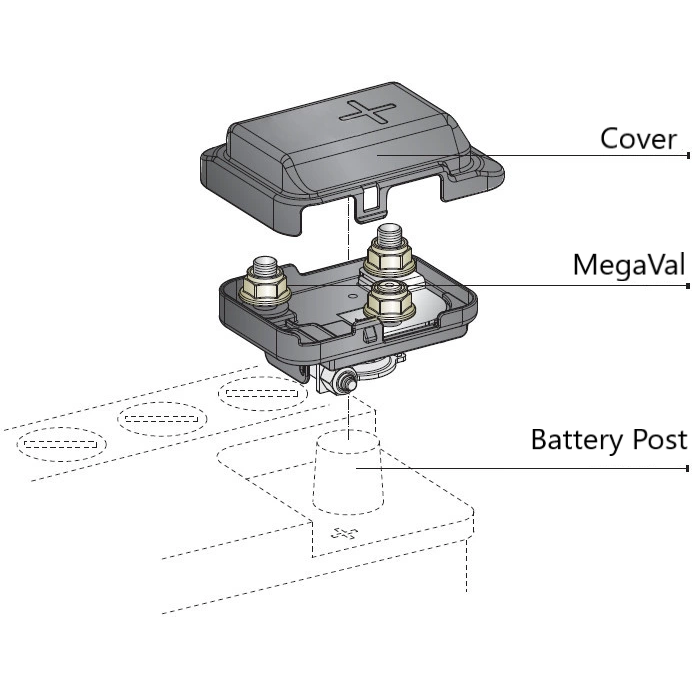

MTA 0101703 Pre-Mounted Housing for 1 Mega/PowerVAL with Cover and Battery Terminal
by MTA
Original price
$14.61
-
Original price
$14.61
Original price
$14.61
$14.61
-
$14.61
Current price
$14.61
Specifications:
| Product Type: | Battery Mounted Power Distribution Unit |
| Minimum Order Qty: | 1 piece |
| Brand: | MTA |
| Part Number | 0101703 |
| Stud Size: | M8 |
| Fuse Type: | MegaVal or PowerVal |
| Sealed/Unsealed: | Unsealed |
| Hardware Included: | Washers and nuts |
| Compliance: | RoHS, REACH |
Associated Components:
The following components used with this connection system and are sold separately
| DESCRIPTION | MTA PN |
| Terminal, M8 Ring, MEGA G90, 10.0 - 20.0 mm² | 1608180-L |
| Terminal, M8 Ring, MEGA G90, 25.0 - 35.0 mm² | 1608190-L |
| Terminal, M8 Ring, MEGA, 10.0 - 20.0 mm² | 1708110-L |
| Terminal, M8 Ring, MEGA, 25.0 - 35.0 mm² | 1708120-L |
| Terminal, M8 Ring, MEGA, 25.0 - 40.0 mm² | 1608196-L |
| Flag Ring Terminal, M8, 10.0-20.0 mm² | 1609200-L |
MegaVal Fuses
| DESCRIPTION | MTA PN |
| 100A MegaVal, Yellow, Tin Plated Zinc | 0701100 |
| 125A MegaVal, Green, Tin Plated Zinc | 0701125 |
| 150A MegaVal, Orange, Tin Plated Zinc | 0701150 |
| 175A MegaVal, White, Tin Plated Zinc | 0701175 |
| 200A MegaVal, Blue, Tin Plated Zinc | 0701200 |
| 225A MegaVal, Light Brown, Tin Plated Zinc | 0701225 |
| 250A MegaVal, Pink, Tin Plated Zinc | 0701250 |
| 100A MegaVal, Yellow, Tin Plated Copper | 0711100 |
| 125A MegaVal, Green, Tin Plated Copper | 0711125 |
| 150A MegaVal, Orange, Tin Plated Copper | 0711150 |
| 175A MegaVal, White, Tin Plated Copper | 0711175 |
| 200A MegaVal, Blue, Tin Plated Copper | 0711200 |
| 225A MegaVal, Light Brown, Tin Plated Copper | 0711225 |
| 250A MegaVal, Pink, Tin Plated Copper | 0711250 |
| 300A MegaVal, Gray, Tin Plated Copper | 0711300 |
| 400A MegaVal, Violet, Tin Plated Copper | 0701401 |
| 500A MegaVal, Brown, Tin Plated Copper | 0701600 |
PowerVAL Fuses
| DESCRIPTION | MTA PN |
| CAL.1 PowerVAL, Gray, Tin Plated Zinc Alloy | 0701350 |
| CAL.2 PowerVAL, Black, Tin Plated Zinc Alloy | 0701400 |
| CAL.3 PowerVAL, Red, Tin Plated Copper | 0701450 |
| CAL.4 PowerVAL, Brown, Tin Plated Copper | 0701500 |
| CAL.5 PowerVAL, Wheat Gray, Tin Plated Copper | 0701700 |
