0101697 MiniVAL/Maxicompact/M8C Module Kit

by MTA
$18.25
We have 22 in stock. Lead time: Contact Us

MTA offers 14 different modules and a variety of frames, covers, and brackets to build a wide range of flexible modular solutions for holding fuses, relays, and diodes. All of the modules are designed with secondary locks to guarantee maximum safety and high performance. They are built to resist stress and provide reliable technology.

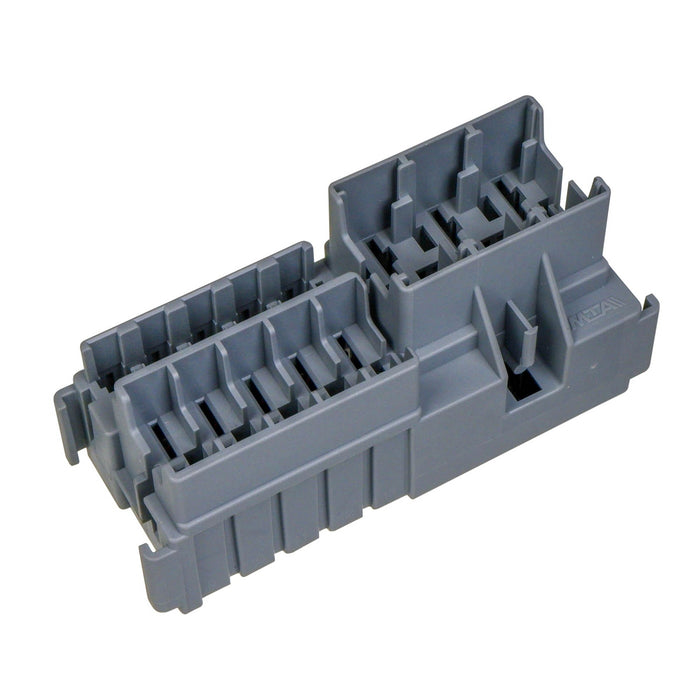

This module will hold five (5) MiniVal fuses, five  (5 ) MaxiCompact fuses, and three (3) M8 Compact fuses.

Specifications

  • Product Family:  Modular Power Distribution
  • Brand:  MTA
  • Module Description:  [(5 x MiniVal Fuses) + (5 x MaxiCompact Fuses) + (3 x M8 Compact Fuses)]
  • Part Number;  0101697
  • KIT BOM:  [([1 x 0301694 Mod) + (3 x 0300564 Sec Lock)]
  • Alternate Packaging:  0301697 (Bulk)
  • Sold Separately:  Terminals, frames, brackets, and fuses

2.8 mm Terminals

  • 1108330  Mini 280 Female Terminal, 0.35 - 0.75 mm², CuFe Sn, Loose Piece
  • 1708330  Mini 280 Female Terminal, 0.35 - 0.75 mm², CuFe Sn, Reel
  • 1108331  Mini 280 Female Terminal, 1.0 - 2.0 mm², CuFe Sn, Loose Piece
  • 1708331  Mini 280 Female Terminal, 1.0 -2.0 mm², CuFe Sn, Reel
  • 1108332  Mini 280 Female Terminal, 2.0 - 4.0 mm², CuFe Sn, Loose Piece
  • 1708332  Mini 280 Female Terminal, 2.0 - 4.0 mm², CuFe Sn, Reel
  • 1708335-B  Mini 280 Female Bus Bar Terminal, 1.0 - 2.0 mm², CuFe Sn, Loose Piece
  • 1708335  Mini 280 Female Bus Bar Terminal, 1.0 - 2.0 mm², CuFe Sn, Reel
  • 1708336-B  Mini 280 Female Bus Bar Terminal, 2.5 - 4.0 mm², CuFe Sn,  Loose Piece
  • 1708336  Mini 280 Female Bus Bar Terminal, 2.5 - 4.0 mm², CuFe Sn, Reel

6.3 mm Terminals

  • 1108500   630 Female Terminal, 0.35  - 0.5  mm², CuZn Sn, Loose Piece
  • 1708500  630 Female Terminal, 0.35  - 0.5  mm², CuZn Sn, Reel
  • 1108501  630 Female Terminal, 0.75  - 1.5  mm², CuZn Sn, Loose Piece
  • 1708501  630 Female Terminal, 0.75  - 1.5  mm², CuZn Sn, Reel
  • 1108502  630 Female Terminal, 2.0 - 3.0  mm², Cu Alloy Sn, Loose Piece
  • 1708502  630 Female Terminal, 2.0 - 3.0  mm², Cu Alloy Sn, Reel
  • 1108503  630 Female Terminal, 4.0 - 6.0  mm², Cu Alloy Sn, Loose Piece
  • 1708503  630 Female Terminal, 4.0 - 6.0  mm², Cu Alloy Sn, Reel

8.0 mm Terminals

  • 1107620  Female, Maxi 800 w/ Clip, 1.5 - 2.5 mm², CuZn-Sn, Loose Piece
  • 1707620  Female, Maxi 800 w/ Clip, 1.5 - 2.5 mm², CuZn-Sn, Reel
  • 1107621  Female, Maxi 800 w/ Clip, 4.0- 6.0 mm², CuZn-Sn, Loose Piece
  • 1707621  Female, Maxi 800 w/ Clip, 4.0- 6.0 mm², CuZn-Sn, Reel
  • 1107622  Female, Maxi 800 w/ Clip, 8.0 - 10.0 mm², CuZn-Sn, Loose Piece
  • 1707622  Female, Maxi 800 w? Clip, 8.0 - 10.0 mm², CuZn-Sn, Reel

MiniVal Fuses

MaxiCompact Fuses

  • 0702925-B  25 Amp, MaxiCOMPACT Fuse, White
  • 0702930-B  30 Amp, MaxiCOMPACT Fuse, Light Green
  • 0702935-B  35 Amp, MaxiCOMPACT Fuse, Dark Green
  • 0702940-B  40 Amp, MaxiCOMPACT Fuse, Orange
  • 0702950-B  50 Amp, MaxiCOMPACT Fuse, Red
  • 0702960-B  60 Amp, MaxiCOMPACT Fuse, Blue

M8Compact Fuses

Brackets & Covers

  • 0101580  Mounting bracket for a single module
  • 0100699  Mounting bracket for two modules
  • 0101590  Cover for a single module
  • 0101550  Cover for two adjacent modules
  • 0101180  Bracket, extended height for two adjacent modules
  • 0301620-B  Bracket for joining two modules end-to-end
  • 0301630-B  Relay Retainer

Fuses & Covers

  • 0101450  5 Way Frame
  • 0101540  Cover for 5 way frame
  • 0101520  4 Module Frame, Flush Mount, Gray
  • 0101530  Cover for 4 Module Frame
  • 0301682  12 Module Frame, Upright Mount, Gray
  • 0301680  12 Module Frame, Flush Mount, Gray
  • 0301681  12 Module Frame, Flush Mount, Gray

Hand Crimp Tool

  • CID3305-HCT  Hand Crimp Tool for unsealed MTA Terminals
