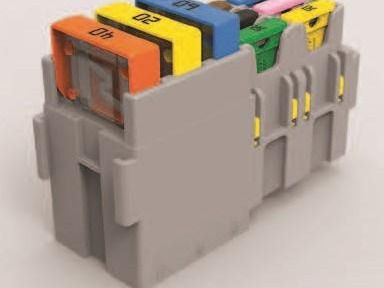

0101600 MaxiVAL/UniVAL Module Kit

by MTA
$26.00
We have 35 in stock. Lead time: Contact Us

Pricing (USD)

  • 1-23 Pieces ($26.00 / Pc)
  • 24+ Pieces ($24.20 / Pc)

7MTA offers 14 different modules and a variety of frames, covers, and brackets to build a wide range of flexible modular solutions for holding fuses, relays, and diodes. All of the modules are designed with secondary locks to guarantee maximum safety and high performance. They are built to resist stress and provide reliable technology.

This is a kit that contains 1 module and its associated secondary lock(s).

 Product Family:  Modular Power Distribution
 Brand:  MTA
 Module Description:  [(6 x UniVal Fuses) + (3 x Maxi-Val Fuses)]
 Part Number;  0101600
 KIT BOM:  [([1 x 0301601 Mod) + (4 x 0301601 Sec Lock) + (1 x 0301602 Sec Lock)]
 Alternate Packaging:  0301600 (Bulk)
 Sold Separately:  Terminals, frames, brackets and fuses
     MTA PN  UniVal Fuse Terminals
     1107920  UniVal, F630 with Clip, 0.5 - 1.5 mm², Tin Plated, Loose Piece
     1707920  UniVal, F630 with Clip, 0.5 - 1.5 mm², Tin Plated, Reel
    1107930  UniVal, F630 with Clip, 2.0 - 3.0 mm², Tin Plated, Loose Piece
     1707930  UniVal, F630 with Clip, 2.0 - 3.0 mm², Tin Plated, Reel
     1107940  UniVal, F630 with Clip, 4.0- 6.0 mm², Tin Plated, Loose Piece
     1707940  UniVal, F630 with Clip, 4.0- 6.0 mm², Tin Plated, Reel
    1707932-B  UniVal, F630 Bus Bar with Clip, 2.0 - 3.0 mm², Tin Plated, Loose Piece
    1707932  UniVal, F630 Bus Bar with Clip, 2.0 - 3.0 mm², Tin Plated, Reel
    1707942-B  UniVal, F630 Bus Bar with Clip, 4.0 - 6.0 mm², Tin Plated, Loose Piece
    1707942  UniVal, F630 Bus Bar with Clip, 4.0 - 6.0 mm², Tin Plated, Reel



     MTA PN:  MaxiVal Terminals
    1107650  Female, Maxi 800, 1.5 - 2.5 mm², CuZn-Sn, Loose Piece
    1707650  Female, Maxi 800, 1.5 - 2.5 mm², CuZn-Sn, Reel
    1107660  Female, Maxi 800, 4.0- 6.0 mm², CuZn-Sn, Loose Piece
    1707660  Female, Maxi 800, 4.0- 6.0 mm², CuZn-Sn, Reel
    1107670  Female, Maxi 800, 8.0 - 10.0 mm², CuZn-Sn, Loose Piece
    1707670  Female, Maxi 800, 8.0 - 10.0 mm², CuZn-Sn, Reel
    1707672-L  Female, Maxi 800, 8.0 - 10.0 mm², CuNi-Sn, Loose Piece
    1707672  Female, Maxi 800, 8.0 - 10.0 mm², CuNi-Sn, Reel
    1107671  Female, Maxi 800, 16.0 mm², CuNi-Sn, Loose Piece
    1707671  Female, Maxi 800, 16.0 mm², CuNi-Sn, Reel






     MTA PN  UniVal Fuses
    0700380-B  UniVal, 1 Amp, Black
    0700390-B  UniVal, 2 Amp, Gray
    0700300-B  UniVal, 3 Amp, Violet
    0700301-B  UniVal, 4 Amp, Pink
    0700310-B  UniVal, 5 Amp, Beige
    0700320-B  UniVal, 7.5 Amp, Brown
    0700330-B  UniVal, 10 Amp, Red
    0700340-B  UniVal, 15 Amp, Blue
    0700350-B  UniVal, 20 Amp, Yellow
    0700360-B  UniVal, 25 Amp, Natural
    0700370-B  UniVal, 30 Amp, Green
    0700375-B  UniVal, 40 Amp, Green
     MTA PN:  Description
    0700900-B  20A, MaxiVal Fuse, Yellow
    0700910-B  30A, MaxiVal Fuse, Green
    0700920-B  40A, MaxiVal Fuse, Orange
    0700930-B  50A, MaxiVal Fuse, Red
    0700940-B  60A, MaxiVal Fuse. Blue
    0700950-B  70A MaxiVal Fuse, Beige
    0700960-B  80A MaxiVal Fuse, Natural
    0700970-B  100A MaxiVal Fuse, Violet







    Part No.   Description
    0101580  Mounting bracket for a single module
    0100699  Mounting bracket for two modules
    0101590  Cover for a single module
    0101550  Cover for two adjacent modules
    0101180  Bracket, extended height for two adjacent modules
    0301620-B  Bracket for joining two modules end-to-end
    0301630-B  Relay Retainer





    Part No. Description
    0101450  5 Way Frame
    0101540  Cover for 5 way frame
    0101520  4 Module Frame, Flush Mount, Gray
    0101530  Cover for 4 Module Frame
    0301682  12 Module Frame, Upright Mount, Gray
    0301680  12 Module Frame, Flush Mount, Gray
    0301681  12 Module Frame, Flush Mount, Gray



    Part No.  Description
     CID3305-HCT  Hand Crimp Tool for unsealed MTA Terminals
