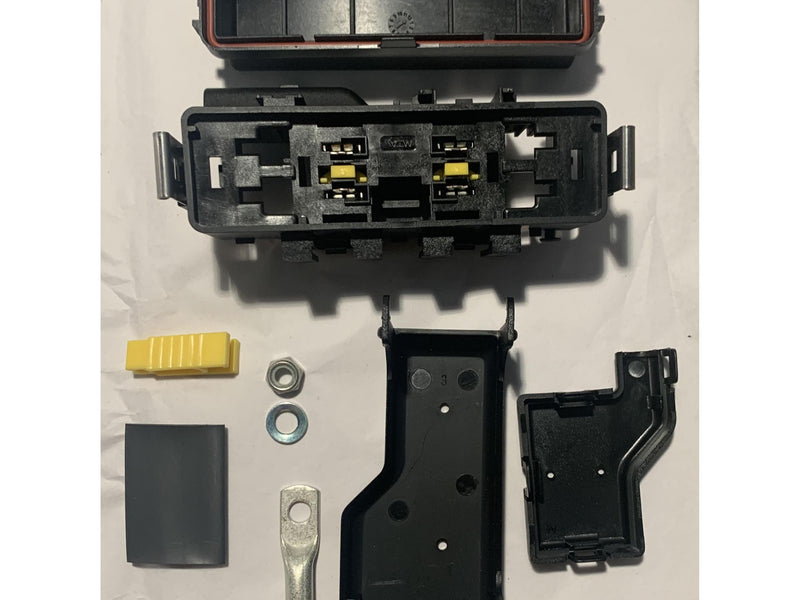

0100800 MaxiVAL Link Box Kit

This module will hold 4 MaxiVAL fuses.

• Product Family: Link Box Kit (Bussed)
• Module Description:  4 MaxiVAL Fuses (fuses not included)
• Minimum Order Qty: 1 piece
• Brand: MTA
• MTA Part Number: 0100800
• Kit Includes: Bottom Cover + Sec Lock + Nut
• Terminals, Fuses, Fuse Puller Lug, and Connectors sold separately

 MTA PN         Description

1707650       Terminal, Female, Maxi 800, 1.5 - 2.5 sqmm, CuZn-Sn, Loose Piece

1707650R    Terminal, Female, Maxi 800, 1.5 - 2.5 sqmm, CuZn-Sn, Reel

1707660       Terminal, Female, Maxi 800, 4.0- 6.0 sqmm, CuZn-Sn, Loose Piece

1707660R    Terminal, Female, Maxi 800, 4.0- 6.0 sqmm, CuZn-Sn, Reel

1707670       Terminal, Female, Maxi 800, 8.0 - 10.0 sqmm, CuZn-Sn, Loose Piece

1707670R    Terminal, Female, Maxi 800, 8.0 - 10.0 sqmm, CuZn-Sn, Reel

1707672       Terminal, Female, Maxi 800, 8.0 - 10.0 sqmm, CuNi-Sn, Loose Piece

1707672R    Terminal, Female, Maxi 800, 8.0 - 10.0 sqmm, CuNi-Sn, Reel

1707671       Terminal, Female, Maxi 800, 16.0 sqmm, CuNi-Sn, Loose Piece

1707671R    Terminal, Female, Maxi 800, 16.0 sqmm, CuNi-Sn, Reel

1605000-L     Terminal, Lug, M6, 16 mm², Tin plated copper

MTA PN         Description

0700900       20A, MaxiVAL, YELLOW

0700910       30A, MaxiVAL, GREEN

0700920       40A, MaxiVAL, ORANGE

0700930       50A, MaxiVAL,RED

0700940       60A, MaxiVAL, BLUE

0700950       70A, MaxiVAL, BEIGE

0700960       80A, MaxiVAL, NATURAL

0700970       100A MaxiVAL, VIOLET

MTA PN           Description

0300949-B        Clip to gang link boxes together

0300691-B        Mounting Bracket

MTA PN            Description

4440310         Conn 2F, 800 Power, Blue with Sec lock

4440340          Conn 2F, 800 Power, Gray with sec Lock

MTA PN           Description

0300358       Fuse extractor tool
