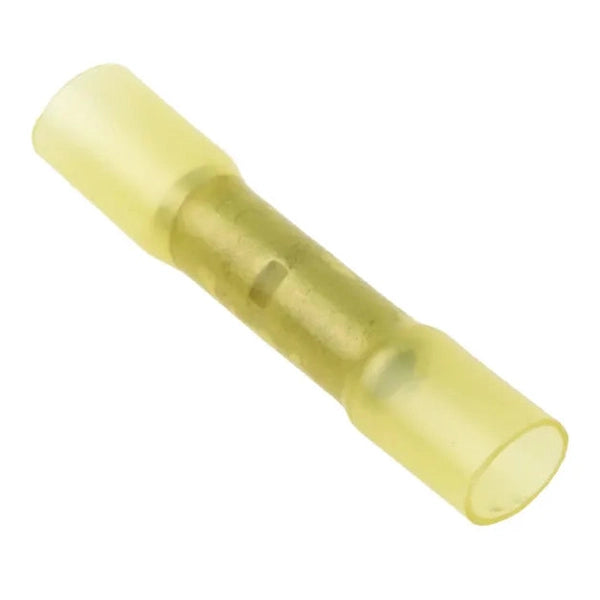

CIDHT5-20NY Drop in for Molex 19164-0056 Perma-Seal Sealed Heat Shrink Butt Splice , 12-10 AWG, Yellow

Original price $0.85 - Original price $0.85
Original price
$0.85
$0.85 - $0.85
Current price $0.85

CIDHT5-20NY is a drop in replacement for Molex 19164-0056 Perma-Seal Butt Splice..  This heat shrinkable butt splice contains adhesive inside the tubing to seal the splice.

19164-0056 Butt Splice Details:

Product Type:  Heat Shrinkable Butt Splce
Minimum Order Qty:  1 piece
Brand: Connector ID
Part Number CIDHT5-20NY
Drop-in Replacement for:  Molex
Product Family: Heat Shrink Terminals
Wire Size AWG: 12 - 10 AWG
Wire Size Metric: 4.0 - 6.0 mm²
Rated Amperage 12 AWG: 35 amps
Rated Amperage 10 AWG: 50 amps
Sealed/Unsealed: Sealed
Sleeve Material:  Nylon
Sleeve Color:  Yellow
Temperature Range:  -55 to +105ᵒ C
Shrink Temperature: 180ᵒ C
Dimensions:  d2: 1.614 mm / L: 41.0 mm
Compliance:  RoHS, REACH

Reference PN:

Part Number:   19164-0056 Molex

Associated Terminal Family:

The following  the other termina wire size ranges in this famly.

CIDHT0.5-NY Heat Shrink Butt Splice  0.20 - 0.35 mm² (26-22 AWG), Clear
CIDHT2-NY Heat Shrink Butt Splice  1.5 - 2.5 mm² (16-14 AWG), Blue
CIDHT8-NY Heat Shrink Butt Splice  8.0 mm² (8 AWG), Red

We have 100 in stock. Volume Pricing Available
