GEP PDM-R4E01 Sealed Power Distribution Module, (3) MAXI ISO Relays
Original price
$16.80
-
Original price
$16.80
Original price
$16.80
$16.80
-
$16.80
Current price
$16.80

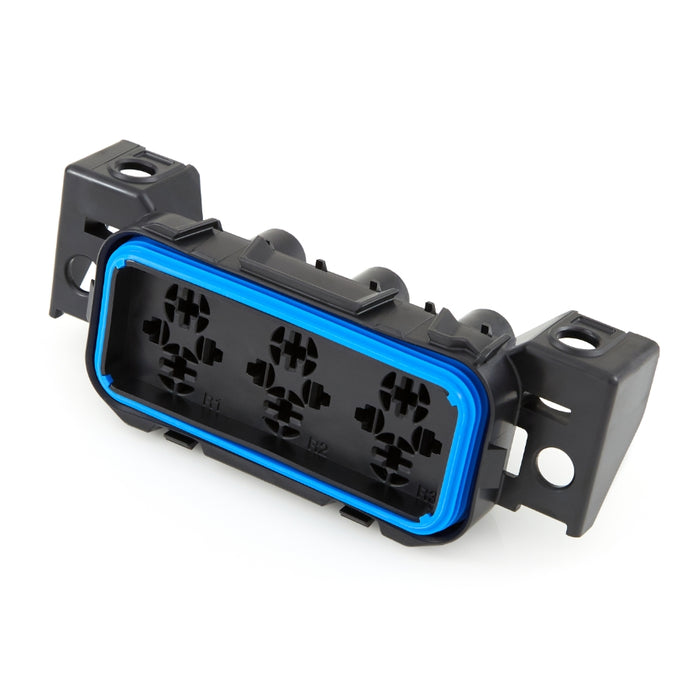

GEP Power Products PDM-REC01 is a sealed, 15-cavity module that houses three Maxi ISO Relays. These power distribution modules can be ganged or stacked to create a custom-sealed power distribution center.
GEP PDM-R4E01 Sealed ISO MAXI Relay PDM Details:
| Product Type: | Power distribution module with interface seal |
| Minimum Order Qty: | 1 piece |
| Part Number | PDM-R4E01 |
| Number of cavities: | 15 |
| Product Family: | Hybrid |
| Sealed/Unsealed: | Sealed IP67 |
| Relay Type: | Maxi ISO Relay |
| Flammability | UL94 - V-0 |
| Max Voltage: | 58 volts |
| Color: | Black |
| Compliance: | RoHS, REACH |
| Product Drawing: | PDM-R_SERIES_SALES_REV3.pdf |
Assoc Components
Associated components are sold separately
| Part Number | Description |
| SC38-2006A-B003 | Maxi Relay Secondary Lock (3 Required) |
| PDM-TC | Cover with GEP Logo |
| PDM-TCP | Cover, Plain without GEP Logo |
| PDM-SCT | Tether for attaching the cover to PDM |
| PDM-TMC | M6 PDM Mounting Clips (optional 2 required) |
Terminal & Seals
Associated terminals and seals are sold separately
| Part Number | Maxi Relay Contact Terminals & Wire Seals |
| CID400-9.5-FS1 | 9.5 mm Terminal, 4.0 - 6.0 mm², (12 - 10 AWG) Tin Plated |
| CID400-9.5-FS2 | 9.5 mm Terminal, 8.0 - 10 mm², (8 AWG) Tin Plated |
| CID4001 | 9.5 mm Seal, 3.4 - 4.3 mm wire insul. dia., (10 TXL), Dk. Red | 15327126 |
| PDM-TWS-D4 | 9.5 mm Seal, 4.6 - 5.3 mm wire insul. dia.., (8 TXL), LT. Blue |
| CID0907 | 9.5 mm Cavity Plug, Green | 10720907 |
| Part Number | Maxi Relay Coil Terminals & Wire Seals |
| CID400-6.3-FS1 | 6.3 mm Terminal, 0.5 -0.8 mm², (18 - 20 AWG) Tin Plated | 12052457 |
| CID400-6.3-FS1 | 6.3 mm Terminal, 1.0-2.0 mm², (16 - 14 AWG) Tin Plated | 12052455 |
| CID400-6.3-FS1 | 6.3 mm Terminal, 3.0-5.0 mm², (12 -10 AWG) Tin Plated | 12052456 |
| CID1146 | 6.3 mm Seal, 1.70 - 2.8 mm wire insul. dia., (20-14 TXL), Dk. Red | 15324995 |
| CID4994 | 6.3 mm Seal, 2.81 - 3.75 mm wire insul. dia.., (12 TXL), Lt. Gray | 15324994 |
| CID1515 | 6.3 mm Seal, 3.3 - 4.50 mm wire insul. dia., (10 TXL), Blue | 15324996 |
| CID4993 | 6.3 mm Seal, 4.40 - 5.15 mm wire insul. dia.,(10 SXL) Green | 15324993 |
| CID9255 | 6.3 mm Cavity Plug, Green | 12059255 |
MaxiRelays
Associated relays are sold separately
| MET PN | DESCRIPTION |
| MAB-S-112-A-1 | 70A Maxi-Relay, 12Vdc, SPST |
| MAB-S-112-A-1-1D1 | 70A Maxi-Relay, 12Vdc, SPST with Diode suppression |
| MAB-S-112-A-1R | 70A Maxi-Relay, 12Vdc, SPST with Resistor suppression |
