MTA 4540315 (former 4440310) Female Connector, 2 way 800 Series, Blue
by MTA
Original price
$2.36
-
Original price
$2.36
Original price
$2.36
$2.36
-
$2.36
Current price
$2.36
Specifications:
| Product Type: | Connector |
| Minimum Order Qty: | 1 piece |
| Brand: | MTA |
| Part Number | 4540315 (4440310) |
| Number of cavities: | 2 |
| Product Family: | F800 (8.0 mm) |
| Sealed/Unsealed: | Unsealed |
| Gender: | Female |
| Color: | Blue |
| Compliance: | RoHS, REACH |
| Kit Part No. Available: | 4540315KIT Includes Connector, Secondary Lock and Terminals |
Associated Components:
The following components used with this connection system and are sold separately

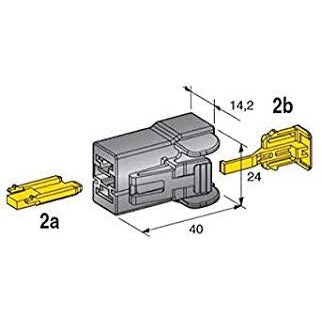

| Secondary Lock: | 4545100 (image 2a) |
| Conn Position Assurance: | 4545300 (image 2b) |
| Terminal 1.5 - 2.5 mm² (14 AWG) | 1707650-L |
| Terminal 4.0 - 6.0 mm² (10 AWG) | 1707660-L |
| Terminal 8.0 - 10. 0 mm² (8 AWG) | 1707670-L |
| Terminal 16. 0 mm² (6 AWG) | 1707671-L |
| Mating Connector: | 4540410 |
