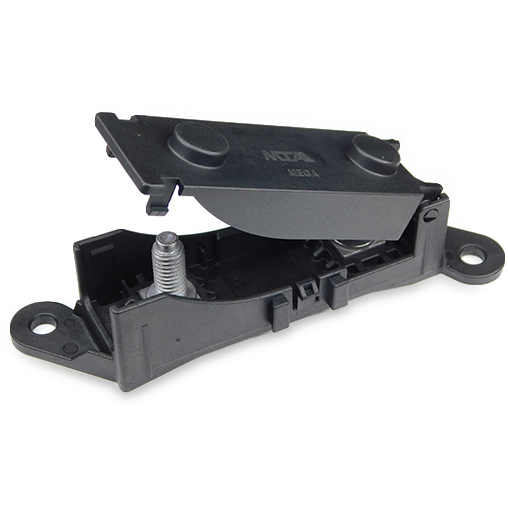

MTA 0301498 Single Modular MegaVAL Fuse Holder, Black

by MTA
Original price $6.70 - Original price $6.70
Original price
$6.70
$6.70 - $6.70
Current price $6.70
Specifications:
Product Type:  Power Distribution Unit
Minimum Order Qty:  1 piece
Brand: MTA
Part Number 0301498   0101498
Stud Size: M8
Fuse Type: MegaVal
Sealed/Unsealed: Unsealed
Included: Cover
Compliance:  RoHS, REACH

Associated Components:

The following components used with this connection system and are sold separately

DESCRIPTION MTA PN
Terminal, M8 Ring, 8.0 - 10.0 mm² 1706760-L
Lug, M8 Ring, 16.0 mm² 1605100
Lug, M8 Ring, 25.0 mm² 1605010
Lug, M8 Ring, 35.0 mm² 1605021
Terminal, M8 Ring, MEGA, Pol A, 25.0 - 40.0 mm² 1609330-B
Terminal, M8 Ring, 40.0 - 70.0 mm² 1607510-B

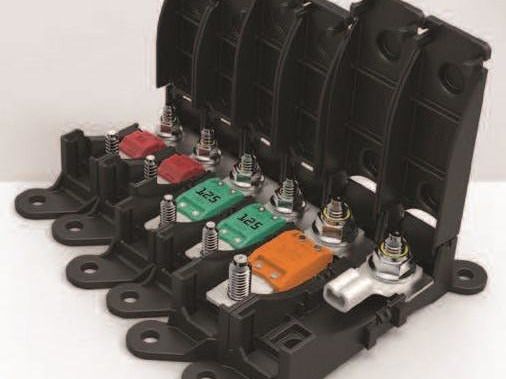

Bus Bars
MTA PN DESCRIPTION
0301509 2 Way MidiVAL Bus Bar
0301252 2 way Bus Bar - 1 MidiVAL / 1 MegaVAL
0301508 3 Way MidiVAL Bus Bar
0301511 3 Way Bus Bar - 1 MidiVAL / 2 MegaVAL
0301512 4 Way MidiVAL Bus Bar - 2 MidiVA L/ 2 MegaVAL
0301250 4 Way MidiVAL Bus Bar - 3 MidiVAL / 1 MegaVAL
0301249 5 Way MidiVAL Bus Bar - 4 MidiVAL / 1 MegaVAL
0301227 5 Way MidiVAL Bus Bar
0301225 6 Way MidiVAL Bus Bar - 4 MidiVAL / 2 MegaVAL
0301226 7 Way MidiVAL Bus Bar - 4 MidiVAL / 3 MegaVAL
Power Feed Modules
MTA PN DESCRIPTION
0301224 MidiVAl Single Stud Feed Module
0301223 MegaVAl Single Stud Feed Module
MegaVal Fuses
DESCRIPTION MTA PN
100A MegaVal, Yellow, Tin Plated Zinc  0701100
125A MegaVal, Green, Tin Plated Zinc  0701125
150A MegaVal, Orange, Tin Plated Zinc  0701150
175A MegaVal, White, Tin Plated Zinc  0701175
200A MegaVal, Blue, Tin Plated Zinc  0701200
225A MegaVal, Light Brown, Tin Plated Zinc  0701225
250A MegaVal, Pink, Tin Plated Zinc 0701250
100A MegaVal, Yellow, Tin Plated Copper 0711100
125A MegaVal, Green, Tin Plated Copper 0711125
150A MegaVal, Orange, Tin Plated Copper 0711150
175A MegaVal, White, Tin Plated Copper 0711175
200A MegaVal, Blue, Tin Plated Copper 0711200
225A MegaVal, Light Brown, Tin Plated Copper 0711225
250A MegaVal, Pink, Tin Plated Copper 0711250
300A MegaVal, Gray, Tin Plated Copper 0711300
400A MegaVal, Violet, Tin Plated Copper 0701401
500A MegaVal, Brown, Tin Plated Copper 0701600
PowerVAL Fuses
DESCRIPTION MTA PN
CAL.1 PowerVAL, Gray, Tin Plated Zinc Alloy 0701350
CAL.2 PowerVAL, Black, Tin Plated Zinc Alloy 0701400
CAL.3 PowerVAL,  Red, Tin Plated Copper 0701450
CAL.4 PowerVAL, Brown, Tin Plated Copper 0701500
CAL.5 PowerVAL, Wheat Gray, Tin Plated Copper 0701700
We have 167 in stock. Volume Pricing Available
