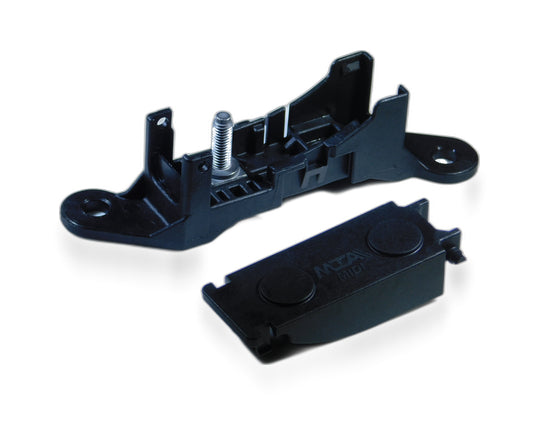

MTA 0301224 Single Stud MidiVAL Bus-Bar Feed Module, Black
by MTA
Original price
$3.75
-
Original price
$3.75
Original price
$3.75
$3.75
-
$3.75
Current price
$3.75
This range of fuse holders can be used stand-alone or clipped together to form a multiple-fuse block with a busbar. They accept MidiVal, MegaCompact and MegaVal fuses.
Key Specs:
| Product Type: | Module, Feed for bus bars |
| Minimum Order Qty: | 1 piece |
| Brand: | MTA |
| Part Number | 0301224 0101224 |
| Stud Sizes: | M5 |
| Compliance: | RoHS, REACH |
Associated Components:
The following components used with this fuse holder and are sold separately
| MTA PN | DESCRIPTION |
| 1708240-L | Terminal, M5 Ring, MIDI, 2.5 - 4.0 mm², CuZn-Sn |
| 1705606-L | Terminal, M5 Ring, MIDI, 2.5 - 4.0 mm², Cu-Sn |
| 1708245-L | Terminal, M5 Ring, MIDI, 6.0 - 8.0 mm², CuZn-Sn |
| 1705705-L | Terminal, M5 Ring, MIDI, 6.0 - 8.0 mm², Cu-Sn |
| 1708250-L | Terminal, M5 Ring, MIDI, 10.0 - 20.0 mm², CuZn-Sn |
| 1705835-L | Terminal, M5 Ring, MIDI, 10.0 - 20.0 mm², Cu-Sn |
| 1605905-L | Terminal, M5 Ring, MIDI, 25.0 - 35.0 mm² |
