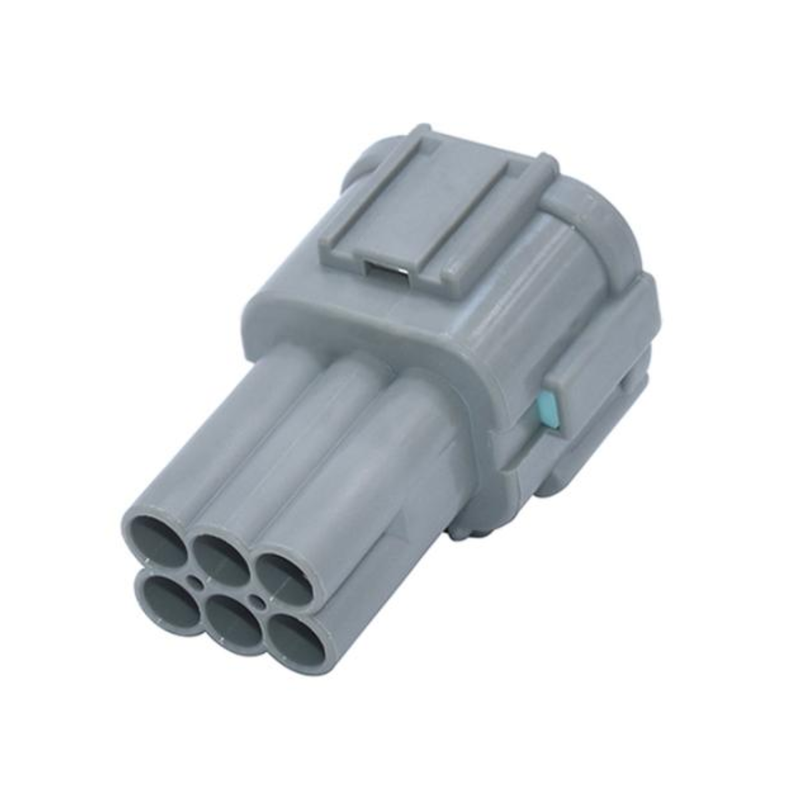

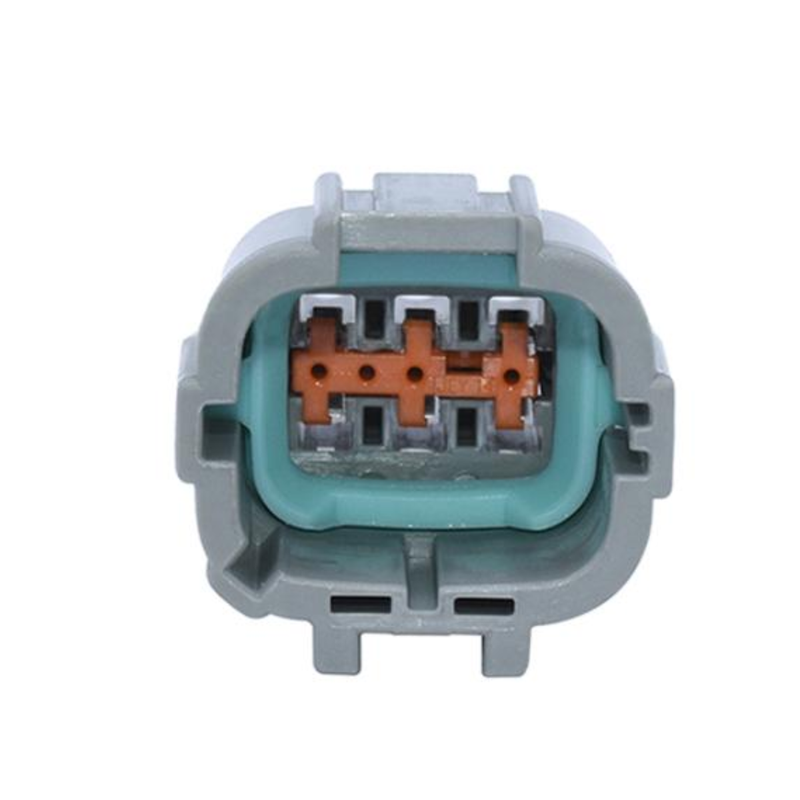

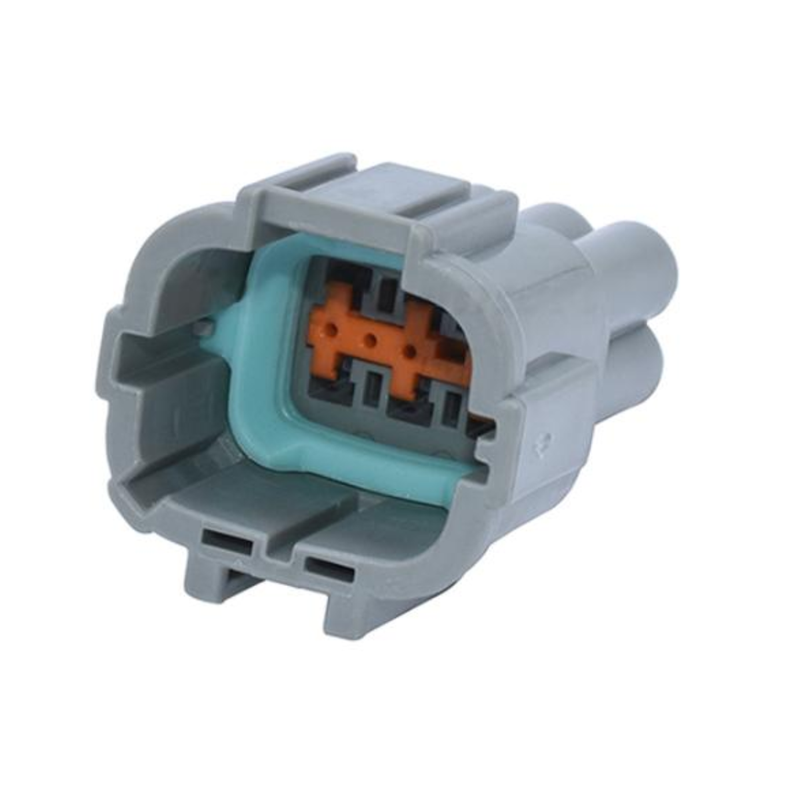

CID2069B-2.3-11 Direct Equivalent to Sumitomo 6188-0560 Male RS090 Connector, 6 way, Seaeld Gray
by Connector ID
Original price
$1.50
-
Original price
$1.50
Original price
$1.50
$1.50
-
$1.50
Current price
$1.50
The RS series consists of a 2.3mm type, classified by terminal size, and is suitable for use in a variety of control and low-power circuits. The RS-standard type connectors adopt an inertia locking system to prevent semi-engagement.
Key Specs
| Product Type: | Connector Asm with TPA lock |
| Number of cavities: | 6 |
| Product Family: | 2.3 Series RS090 |
| Sealed/Unsealed: | Sealed |
| Gender: | Male |
| Material: | PBT |
| Color: | Gray |
| Drawing: | CID2069B-2.3-21.pdf |
| Mating PN: | 6185-1175 |
Terminals & Wire Seals
| Part No. | Description |
| CID204-2.3-MS1 | Male, RS 090, 0.3 - 0.5 mm², SLD, Tin (8100-3803) |
| CID204-2.3-MS2 | Male, RS 090, 0.85 - 1.25 mm², SLD, Tin (8100-3804) |
| CID204-2.3-MS3 | Male, RS 090, 2.0 mm², SLD, Tin (8100-4174) |
| CID1005 | Wire Seal, 1.6 - 2.3 mm Wire Insul. Dia., Silicone, Orange |
| CID1307 | Wire Seal, 1.0 - 2.2 mm Wire Insul. Dia., Silicone, Light Blue |
| CID1299 | Wire Seal, 1.8 - 2.0 mm Wire Insul. Dia., Silicone, Lavender |
| CID1140 | Wire Seal, 2.0 - 3.0 mm Wire Insul. Dia., Silicone, Lime Green |
Product Compliance
| Country of Origin: | China | |
| USHTS: | 8538.90.6000 |
