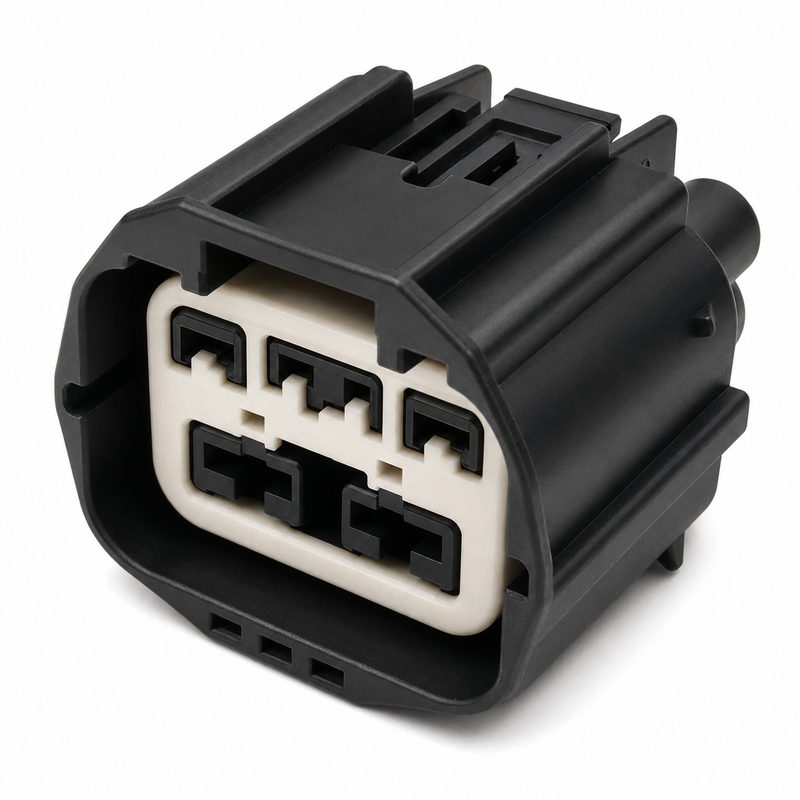

CID1061-HY-21 Yazaki 7289-9093-30 Hybrid Sealed 6-Way Connector, Black
by Connector ID
Original price
$6.83
-
Original price
$6.83
Original price
$6.83
$6.83
-
$6.83
Current price
$6.83
This is the original Yazaki 6-way YESC Hybrid connector used on many Ford trucks to connect the chassis wiring. The connector has the following cavity configuration: [ (2 x 1.5 mm) + (2 x 2.8 mm) + (2 x 6.3 mm)].
Key Specs
| Number of cavities: | 6 |
| Product Family: | Hyrbrid |
| Sealed/Unsealed: | Sealed |
| Gender: | Female |
| Material: | PBT-GF15 |
| Color: | Black |
| Datasheet: | CID1061-HY-21.pdf |
| Mating PN: | 7288-9094-30 |
Associated Terminals
| Part No. | Description |
| CID100-1.5-FS1 | 1.5 mm Female YESC, 0.35 -0.5 mm² (22-20 AWG), Tin Plated (7116-4102-02) |
| CID100-1.5-FS2 | 1.5 mm Female YESC, 0.75 - 1.0 mm² (18-16 AWG), Tin Plated (7116-4103-02) |
| CID101-2.8-FS1 | 2.8 mm Female YESC, 0.35 -0.5 mm² (22-20 AWG), Tin Plated (7116-4150-02) |
| CID101-2.8-FS2 | 2.8 mm Female YESC, 0.75 - 1.0 mm² (18-16 AWG), Tin Plated (7116-4151-02) |
| CID101-2.8-FS3 | 2.8 mm Female YESC, 1.5 - 2.5 mm² (14 AWG), Tin Plated (7116-4152-02) |
| CID100-6.3-FS1 | 6.3 mm Female YESC, 0.5 - 1.0 mm² (20,18, 16 AWG), Tin Plated (7116-4140-02) |
| CID100-6.3-FS2 | 6.3 mm Female YESC, 1.5 - 2.5 mm² (14 AWG), Tin Plated (7116-4141-02) |
| CID100-6.3-FS3 | 6.3 mm Female YESC, 3.0 - 4.0 mm² (12 AWG), Tin Plated (7116-4142-02) |
| CID100-6.3-FS4 | 6.3 mm Female YESC, 5.0 mm² (10 AWG), Tin Plated (7116-4143-02) |
Associated Wire Seals & Cavity Plugs
| Part No. | Description |
| CID1250 | 1.5 mm Wire Seal, 1.19-1.70 mm wire insulation diameter, Red (7158-3030-50) |
| CID1531 | 1.5 mm Wire Seal, 1.60-2.34 mm wire insulation diameter, Blue (7158-3031-90) |
| CID3032 | 1.5 mm Cavity Plug. Green (7158-3032-60) |
| CID3111 | 2.8 mm Wire Seal, 1.19 -1.9 mm wire insulation diameter, Green, (7158-3111-60) |
| CID3112 | 2.8 mm Wire Seal, 1.88 - 2.1 mm wire insulation diameter, Yellow, (7158-3112-70) |
| CID3113 | 2.8 mm Wire Seal, 2.18-3.0 mm wire insulation diameter, White, (7158-3113-40) |
| CID3110 | 2.8 mm Wire Seal, 3.1 - 3.3 mm wire insulation diameter, Lt Gray, (7158-3110-40) |
| CID3114 | 2.8 mm Cavity Plug. Blue (7158-3114-90) |
| CID3081 | 6.3 mm Wire Seal, 1.4 - 2.1 mm wire insulation diameter, Red (7158-3081-50) |
| CID3082 | 6.3 mm Wire Seal, 2.18 - 3.0 mm wire insulation diameter, Blue (7158-3082-90) |
| CID3083 | 6.3 mm Wire Seal, 3.1 - 3.7mm wire insulation diameter, Black (7158-3082) |
| CID3080 | 6.3 mm Cavity Plug. Green (7158-3080-60) |
Product Compliance
| Country of Origin: | Portugal | |
| USHTS: | 8538.90.6000 |
