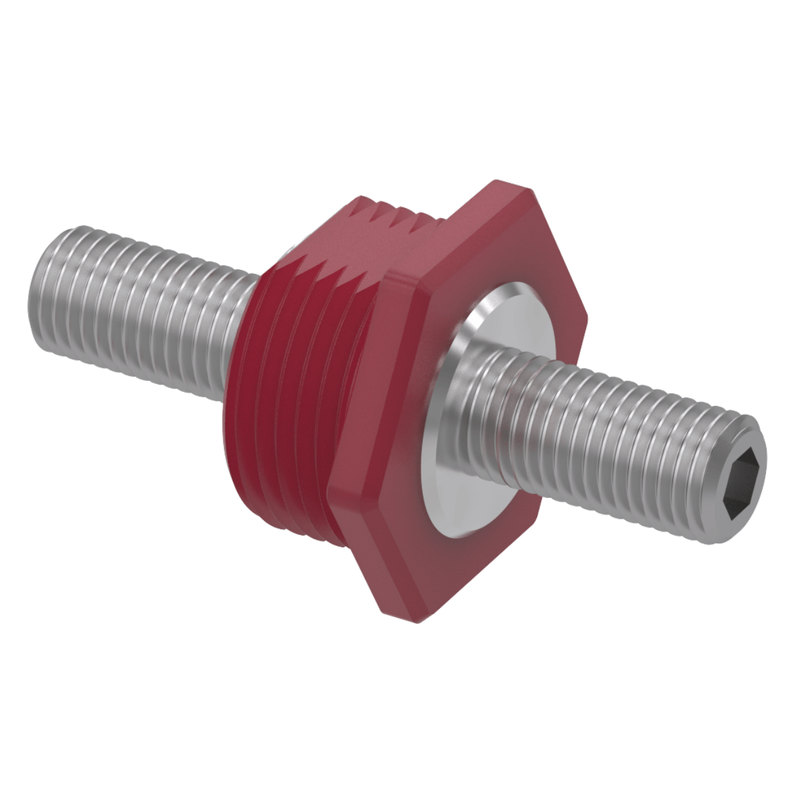

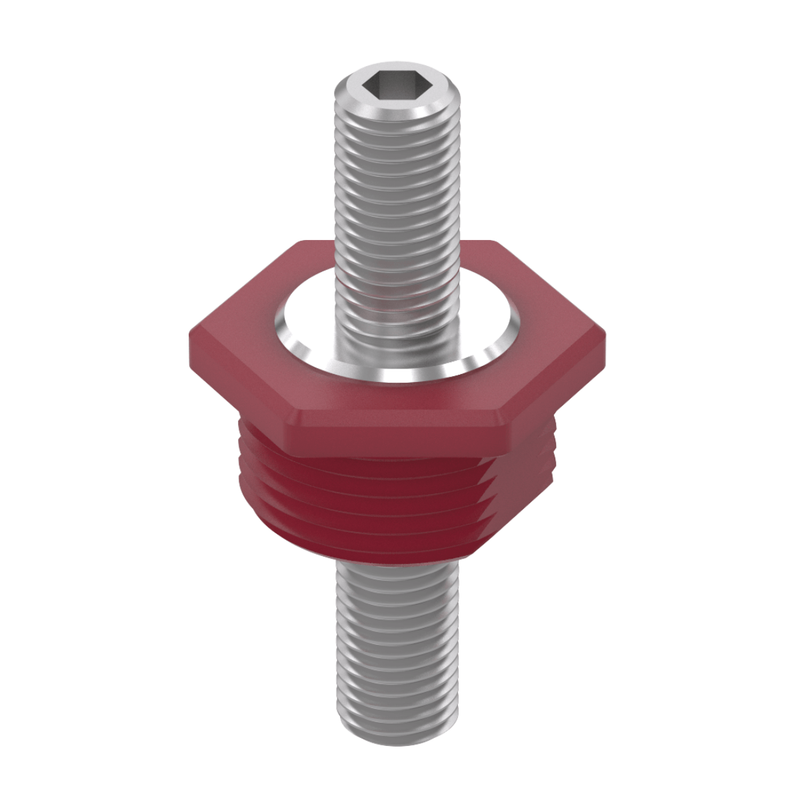

GEP SC47-2011B-A008 Pass-Thru - 1/2IN-13, Style B, Red
Original price
$33.25
-
Original price
$33.25
Original price
$33.25
$33.25
-
$33.25
Current price
$33.25
GEP Power Products Pass-Thrus are military-grade power feed options for heavy-duty applications. They provide the perfect solution for passing high power through firewalls and bulkheads. Featuring a solid copper core, strong current handling, and IP67 sealing, the 1/2" Pass-Thru supports robust system integration in harsh environments.
Key Specs & Drawing
| Product Type: | Pass-thru Stud, Red |
| Minimum Order Qty: | 1 piece |
| Part Number: | SC47-2011B-A008 |
| Brand: | GEP Power Products |
| Product Family: | Power Pass Thru Stud |
| Stud Size: | 1/2 inch |
| Max Amperage Rating: | 600 amps |
| IP Rating: | IP67 when paired with an IP67 washer |
| Thread Pitch: | 13 threads per inch (TPI) |
| Material: | Body: GF Nylon Core: Tin Plated Copper Stud: Stainless Steel |
| Voltage Rating: | 58 V |
| Sales Drawing: | SC47-2011B-A008.pdf |
| Series Drawing: | Pass_Thru_Series.pdf |
Stud Nut Options
| Part No. | Description |
| C02-1002 | Double Nut, 1/2 in, Zinc Plated Steel |
| C02-1002-ZN | Double Nut, Zinc Nickel Plated Steel |
| C02-1024 | Serrated Flange Nut, 1/2-13, Zinc Plated Steel |
Washer/Seal Options
| Part No. | Description |
| SC10-2000A-B008 | Washer/Seal Asm, IP67, Red |
Body Locknut Options
| Part No. | Description |
| C02-1010-R | Nylon Locknut, 1 inch 11 1/2 NPSM, Red (Max Panel Thickness: 0.26 in) |
| C02-1001 | Stainless Steel Locknut (Max Panel Thickness: 0.34 in) |
Boot Options
| Part No. | Description |
| C03-1000-R1 | Boot, Plain Red |
| C03-1000-R2 | Boot, GEP Logo, Red |
Product Compliance
| Country of Origin: | China | |
| USHTS: | 8547.20.0000 |
