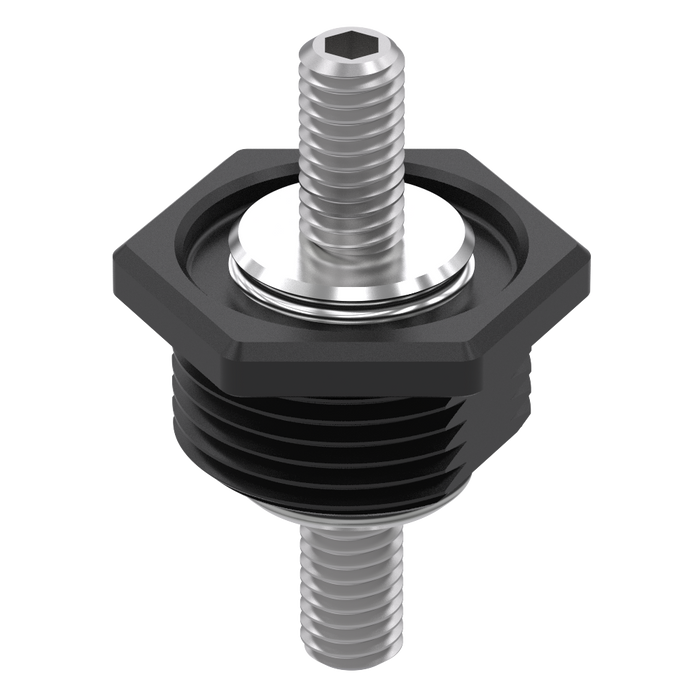

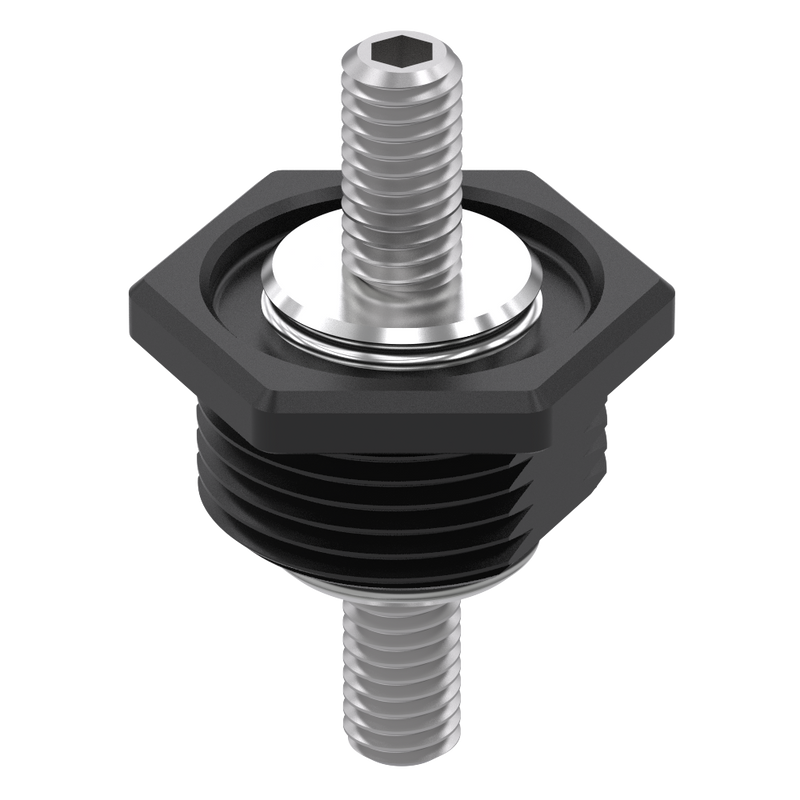

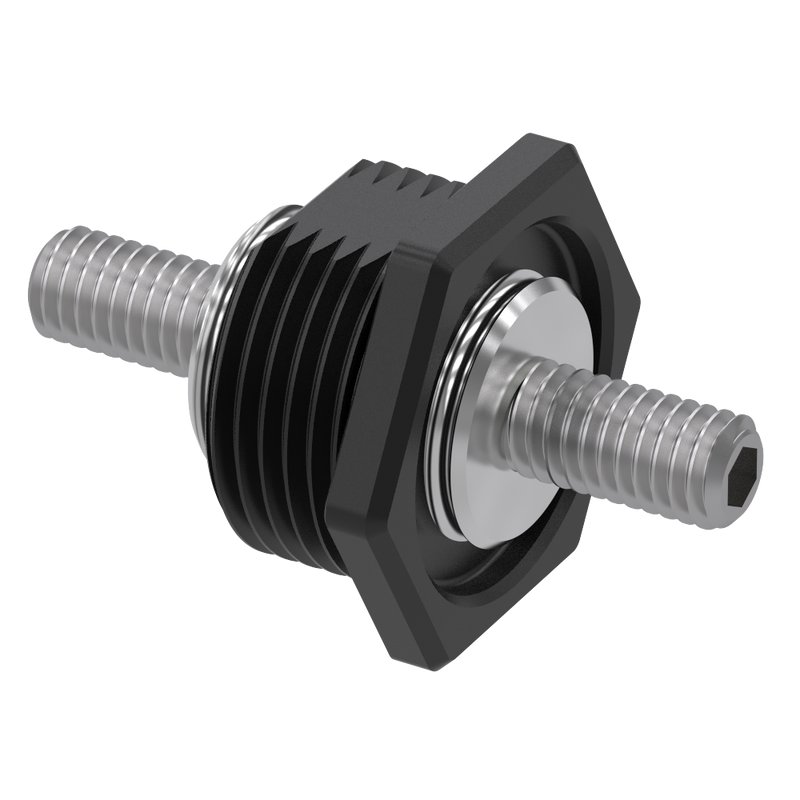

GEP SC47-2010A-F001 Military Grade Pass-Thru - 3/8IN-16, Style A, Impreg, Black
Original price
$33.48
-
Original price
$33.48
Original price
$33.48
$33.48
-
$33.48
Current price
$33.48
GEP Power Products Impregnated Pass-Throughs are military-grade power feed options for heavy-duty applications with IP67 sealing. They provide the perfect solution for passing high power through firewalls and bulkheads that require extra ingress protection.
GEP SC47-2010A-F001 Details:
| Product Type: | Power Pass Through, Stud |
| Minimum Order Qty: | 1 piece |
| Part Number | SC47-2010A-F001 |
| Stud Size: | 3/8"-16 |
| Application: | Ground Feed Bulkhead |
| Color: | Black |
| IP RATING | IP67 sealing when paired with an IP67 washer |
| Electrical Rating: | 400 Amps (2/0 cable or larger) |
| Materials: | |
| Body: | Nylon 66 -Glass Filled |
| Conductive Core: | 110 Copper |
| Studs: | Stainless Steel |
| Compliance: | RoHS, REACH |
| Sales Drawing: | SC47-2010A-F001_SALES |
| Positive (Red) Pass-Thru: | SC47-2010A-F008 |
Associated Components:
The following components are used with this connection system and are sold separately.
| Part Number | Description |
| C02-1010 | Plastic Locknut |
| C02-1011 | Serrated Flange Nut |
| SC10-2000A-B001 | Washer, Pass-Thru, IP67, Black |
