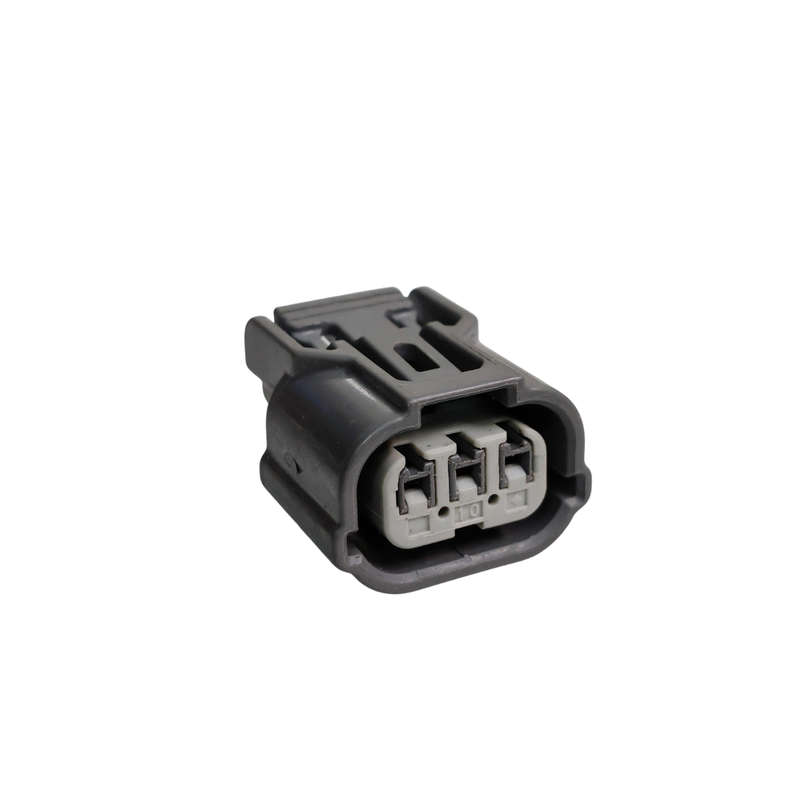

CID2030A-1.0-21 Drop In for Sumitomo 6189-0968 Connector 3 way Female, HX040, Sealed, Dark Gray
by Connector ID
Original price
$2.28
-
Original price
$2.28
Original price
$2.28
$2.28
-
$2.28
Current price
$2.28
The CID2030A-1.0-21 is a drop-in replacement for Sumitomo's original 6189-0968, a 3-way HX040 sealed female connector. Typical application: Honda headlamps.
Key Specs
| Number of cavities: | 3 |
| Product Family: | 1.0 Series |
| Sealed/Unsealed: | Sealed |
| Gender: | Female |
| Material: | PBT |
| Color: | Dark Gray |
| Mating PN: | CID2030A-1.0-11 |
Terminals & Wire Seals
| Part No. | Description |
| CID200-1.0-FS1 | terminal 0.3 - 0.5 mm² (22-20 AWG) |
| CID200-1.0-FS2 | terminal 0.75 - 1.25 mm² (18-16 AWG) |
| CID1393 | wire seal, 0.9 - 1.7 mm wire insulationb diameter, orange |
| CID1308 | wire seal, 1.2 - 2.2 mm wire insulation diameter, light green |
| CID1306 | wire seal, 1.7 - 2.4 mm wire insulation diameter, violet |
| CID1500 | cavity plug, black |
Product Compliance
| USHTS: | 8538.90.6000 |
Connector Repair Kit
The CID2030A-1.0-21KIT includes the connector, terminal lock, terminals, and wire seals required to replace/repair the entire connection system.
| KIT Part Number | CID2030A-1.0-21KIT |
