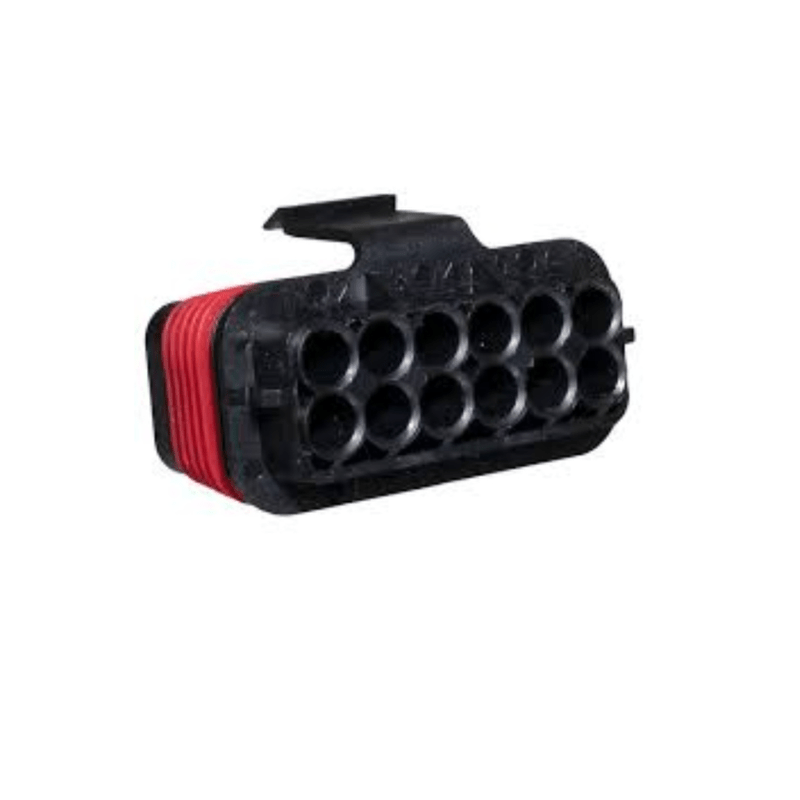

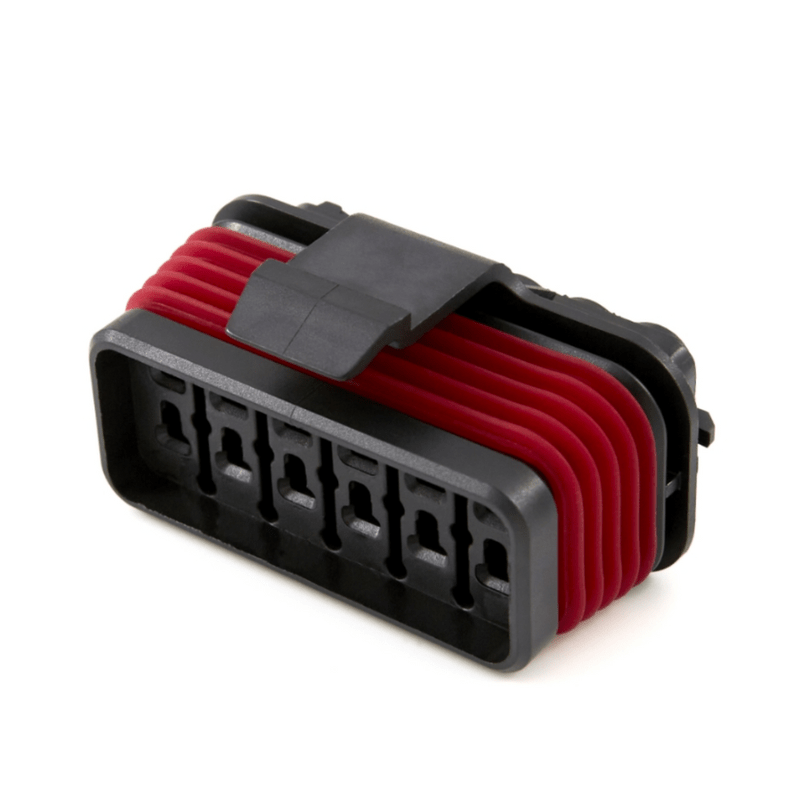

GEP FRH-A12 Fuse/Relay Holder Asm, 280 Footprint, 12 way, Sealed
Sold out
Original price
$4.70
-
Original price
$4.70
Original price
$4.70
$4.70
-
$4.70
Current price
$4.70
The GEP Power Products FRH Series PDMs are designed for demanding environments, featuring compact size, strong sealing performance, versatile mounting options, and a range of housings, covers, and accessories.
Key Specs
| Number of cavities: | 12 |
| Product Family: | 2.8 Series |
| Sealed/Unsealed: | Sealed |
| Fuse Type: | Mini fuse |
| Relay Type: | 280 Micro relay and/or Half Micro relay |
| IP Rating: | IP67, IP69K |
| Voltage Rating: | 58 Vdc |
| Terminal Design: | Aptiv Metri-Pack 280 |
Associated Components

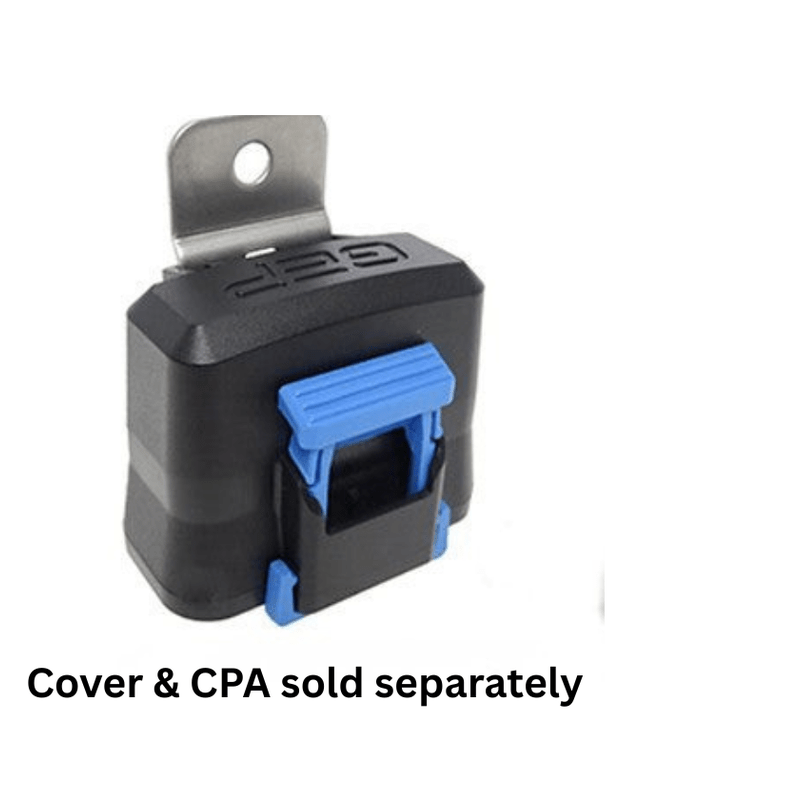

| FRH-A12-C | Cover with a slot for mounting a bracket |
| FRH-A12-T | Terminal Position Assurance (TPA) |
| FRH-A-CPA | Cover Position Assurance (CPA) |
| FRH-A12-MB-A1 | Flat mounting bracket, with anti-rotation, zinc steel |
| FRH-A12-MB-A2 | Flat mounting bracket, with anti-rotation, stainless steel |
| FRH-A12-MB-B1 | Flat mounting bracket, without anti-rotation, zinc steel |
| FRH-A12-MB-B2 | Flat mounting bracket, without anti-rotation, stainless steel |
| FRH-A12-MB-C1 | 90-degree bent mounting bracket, zinc steel |
| FRH-A12-MB-C2 | 90-degree bent mounting bracket, stainless steel |
Terminals & Wire Seals
| Part No. | Description |
| CID400-2.8-FS2 | Terminal, 0.5 - 1.0 mm², 20-16 TXL, Tin Plated Cu Alloy | Aptiv 12077411 |
| CID400-2.8-FS3 | Terminal, 2.0 - 3.0 mm², 14-12 TXL, Tin Plated Cu Alloy | Aptiv 12129493 |
| CID400-2.8-FS4 | Terminal, 3.0 - 5.0 mm², 12-10 TXL, Tin Plated Cu Alloy | Aptiv 12077413 |
| CID1389 | Wire Seal, wire insul. dia. 1.6 - 2.4 mm, Violet (20-18 TXL) | Aptiv 15324985 |
| CID1143 | Wire Seal, wire insul. dia. 2.0 - 3.4 mm, Green (16-14 TXL) | Aptiv 15324982 |
| CID1144 | Wire Seal, wire insul. dia. 2.9 - 3.85 mm, Blue (12 TXL) | Aptiv 15324981 |
| CID1380 | Cavity Plug, Silicone, Green | Aptiv 12010300 |

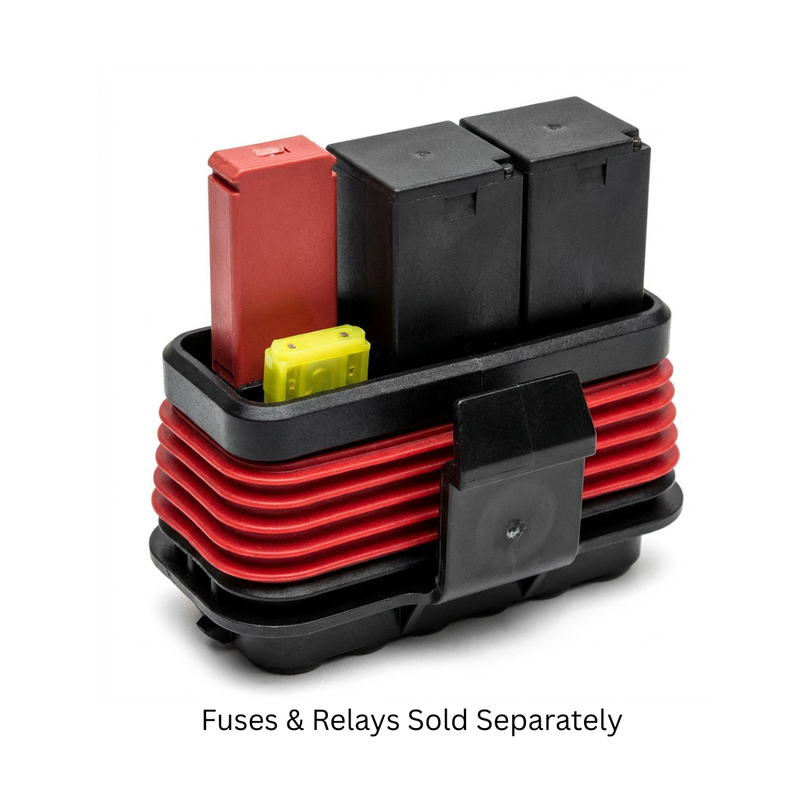

Fuses
| Part No. | Description |
| 0705090 | 2-amp mini fuse, gray |
| 0705100 | 3-amp mini fuse, Violet |
| 0705101 | 4-amp mini fuse, pink |
| 0705110 | 5-amp mini fuse, beige |
| 0705120 | 7.5-amp mini fuse, brown |
| 0705130 | 10-amp mini fuse, red |
| 0705140 | 15-amp mini fuse, blue |
| 0705150 | 20-amp mini-fuse, yellow |
| 0705160 | 25-amp mini fuse, white |
| 0705170 | 30-amp mini fuse, green |
Relays
| Part No. | Description |
| AF-12DR-A | Half Micro, 4 pins, 1 Form A, 20A, 12VDC, Resistor |
| AJ-12DR-C | Full Micro, 5 pins, 1 Form C, 35A, 12VDC, Resistor |
Product Compliance
| Country of Origin: | China | |
| USHTS: | 8547.20.0000 |
Product Documentation
| Product Flyer: | FRH-A12 | |
| Product Drawing: | FRH-A12.pdf |
