GEP PDM-R4D01 Sealed Power Distribution Module for 6 MaxiFuses

GEP PDM-R4D01 Sealed Power Distribution Module for 6 MaxiFuses

by GEP Power Products
Sold out
$17.05 - $17.05
$17.05
$17.05 - $17.05
$17.05

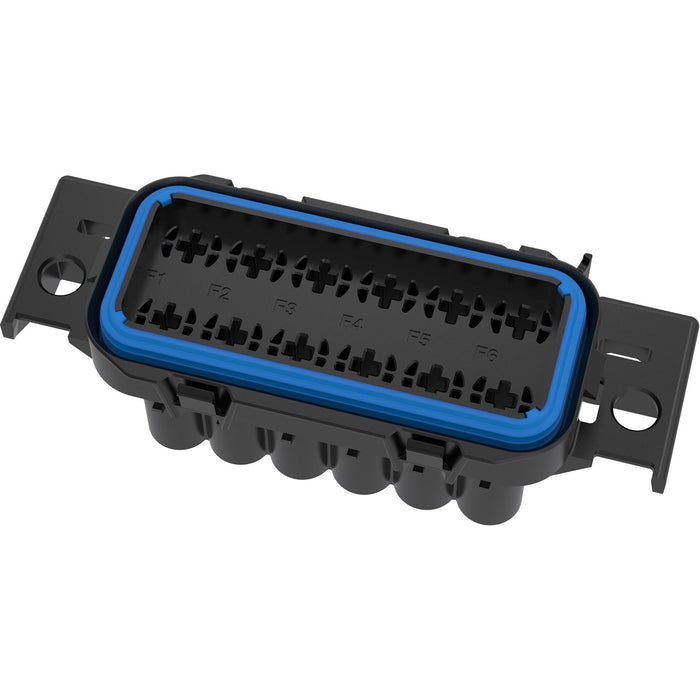

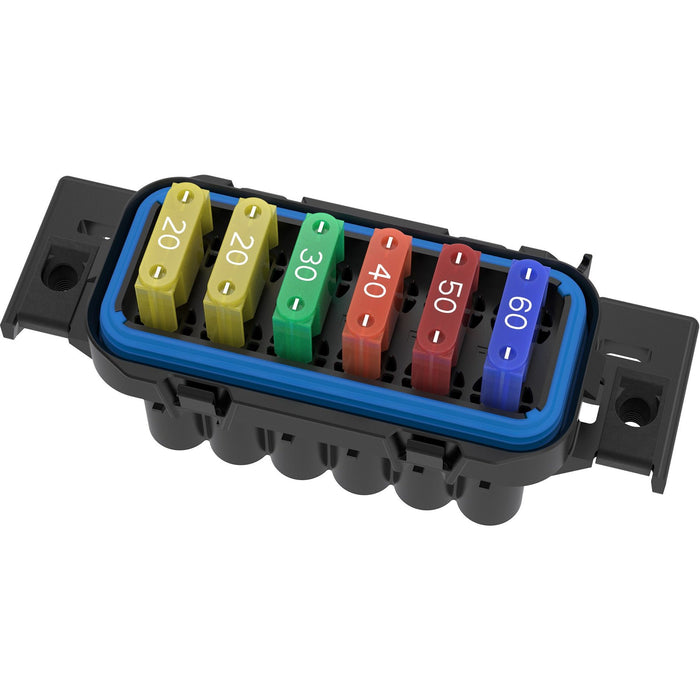

GEP Power Products PDM-R4D01 is a sealed, 12-cavity module. These power distribution modules can be ganged or stacked to create a custom-sealed power distribution center.

GEP PDM-R4D01 Sealed 6-Maxifuse Module Details:

Product Type:  Fuse holder with interface seal
Minimum Order Qty:  1 piece
Part Number PDM-R4D01
Number of cavities: 12
Product Family: 800 Series
Sealed/Unsealed: Sealed IP67
Fuse Type:  MaxiFuse
Flammability UL94 - V-0
Max Voltage:  58 volts
Color: Black
Compliance:  RoHS, REACH
Product Drawing: PDM-R_SERIES_SALES_REV3.pdf
Assoc. Components

Associated components are sold separately

Secondary Lock (6 Required)   PDM-TT4
Cover with GEP Logo PDM-TC
Cover, Plain without GEP Logo  PDM-TCP
Tether for attached cover to PDM PDM-SCT
M6 PDM Mounting Clips (optional 2 required) PDM-TMC
Terminals & Seals:

Associated terminals and seals are sold separately

Terminal, 2.5 -4.0 mm², (12 AWG) Silver Plated 28224.306.710
Terminal, 6.0-10.0 mm², (10 - 8 AWG) Silver Plated 28225.306.710
Terminal, 10.0-16.0 mm², (8 - 6 AWG) Silver Plated 28243.306.710
Wire Seal, 2.7 - 3.0 mm wire insul. dia., Green, Silicone PDM-TWS-L1
Wire Seal, 3.4 - 3.8 mm wire insul. dia., Purple, Silicone PDM-TWS-L2
Wire Seal, 4.0 - 4.5 mm wire insul. dia., Orange, Silicone PDM-TWS-L3
Wire Seal, 4.6 - 5.3 mm wire insul. dia., Lt Blue, Silicone PDM-TWS-L4
Wire Seal, 5.8-6.6 mm wire insul. dia., Gray, Silicone PDM-TWS-L5
Wire Seal, 6.5-7.8 mm wire insul. dia., Red, Silicone PDM-TWS-L6
Cavity Plug, Yellow, Silicone PDM-TWS-P
Fuses:

Associated fuses are sold separately

DESCRIPTION  MTA PN
20A MaxiVal Fuse, Yellow  0700900
30A MaxiVal Fuse, Green 0700910
40A MaxiVal Fuse, Orange 0700920
50A MaxiVal Fuse, Red 0700930
60A MaxiVal Fuse, Blue 0700940
70A MaxiVal Fuse. Light Brown 0700950
80A MaxiVal Fuse, White  0700960
100A MaxiVal Fuse, Violet 0700970
We have 0 in stock. Volume Pricing Available
