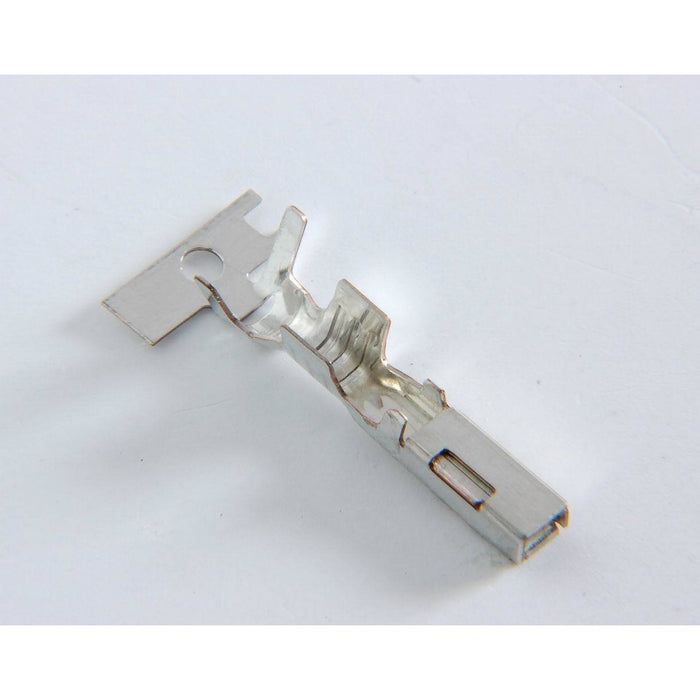

200076R Direct Equivalent to Sumitomo 8240-4952 and 8100-1428

200076R Direct Equivalent to Sumitomo 8240-4952 and 8100-1428

by Connector ID
$0.05 - $0.07
$0.05
$0.05 - $0.07
$0.05
  • Product Type: Terminal
  • Min Order Qty: 1 reel = 3,000 units
  • Connector ID Part Number: 200076R
  • Brand: Sumitomo Equivalent
  • Drop-in Replacement for Sumitomo Part No.: 8240-4952 and 8100-1428
  • Product Family:  HX 090 (2.3mm) and DL 090 (2.3 mm)
  • Wire Size Range: 1.25 -2.0 sqmm
  • Sealed/Unsealed: Sealed
  • Gender:  Female
  • Material: Copper Alloy
  • Plating: Tin
  • Dimensions: L: 18.0 mm / W: 2.9 mm / H: 2.3 mm / E: 6.9 mm

    Associated Wire Seals

    200139      Wire Seal, 1.2 - 1.7 mm Wire Insul. Dia., Silicone, Gray

    200148      Wire Seal, 1.7 - 2.4 mm Wire Insul. Dia., Silicone, Green

    200149      Wire Seal, 2.1 - 2.9 mm Wire Insul. Dia., Silicone, Yellow

    200150      Cavity Plug, Silicone, Green

    Mating Terminals

    200092       Male Term, DL 090, 0.3 - 0.5 sqmm, Tin Plated, Loose Piece

    200092R    Male Term, DL 090, 0.3 - 0.5 sqmm, Tin Plated, Reel

    200094     Male Term, DL 090, 0.75 - 0.85 sqmm, Tin Plated, Loose Piece

    200094R   Male Term, DL 090, 0.75 - 0.85 sqmm, Tin Plated, Reel

    200095      Male Term, DL 090, 2.0 sqmm, Tin Plated, Loose Piece

    200095R   Male Term, DL 090, 0.85 - 1.25 sqmm, Tin Plated, Reel



         We have 0 in stock. Volume Pricing Available
    Description
    • Product Type: Terminal
    • Min Order Qty: 1 reel = 3,000 units
    • Connector ID Part Number: 200076R
    • Brand: Sumitomo Equivalent
    • Drop-in Replacement for Sumitomo Part No.: 8240-4952 and 8100-1428
    • Product Family:  HX 090 (2.3mm) and DL 090 (2.3 mm)
    • Wire Size Range: 1.25 -2.0 sqmm
    • Sealed/Unsealed: Sealed
    • Gender:  Female
    • Material: Copper Alloy
    • Plating: Tin
    • Dimensions: L: 18.0 mm / W: 2.9 mm / H: 2.3 mm / E: 6.9 mm

      Associated Wire Seals

      200139      Wire Seal, 1.2 - 1.7 mm Wire Insul. Dia., Silicone, Gray

      200148      Wire Seal, 1.7 - 2.4 mm Wire Insul. Dia., Silicone, Green

      200149      Wire Seal, 2.1 - 2.9 mm Wire Insul. Dia., Silicone, Yellow

      200150      Cavity Plug, Silicone, Green

      Mating Terminals

      200092       Male Term, DL 090, 0.3 - 0.5 sqmm, Tin Plated, Loose Piece

      200092R    Male Term, DL 090, 0.3 - 0.5 sqmm, Tin Plated, Reel

      200094     Male Term, DL 090, 0.75 - 0.85 sqmm, Tin Plated, Loose Piece

      200094R   Male Term, DL 090, 0.75 - 0.85 sqmm, Tin Plated, Reel

      200095      Male Term, DL 090, 2.0 sqmm, Tin Plated, Loose Piece

      200095R   Male Term, DL 090, 0.85 - 1.25 sqmm, Tin Plated, Reel
