200074R Direct Equivalent to Sumitomo 8240-4862 and 8100-1427
by Connector ID
Original price
$0.05
-
Original price
$0.07
Original price
$0.05
$0.05
-
$0.07
Current price
$0.05
-

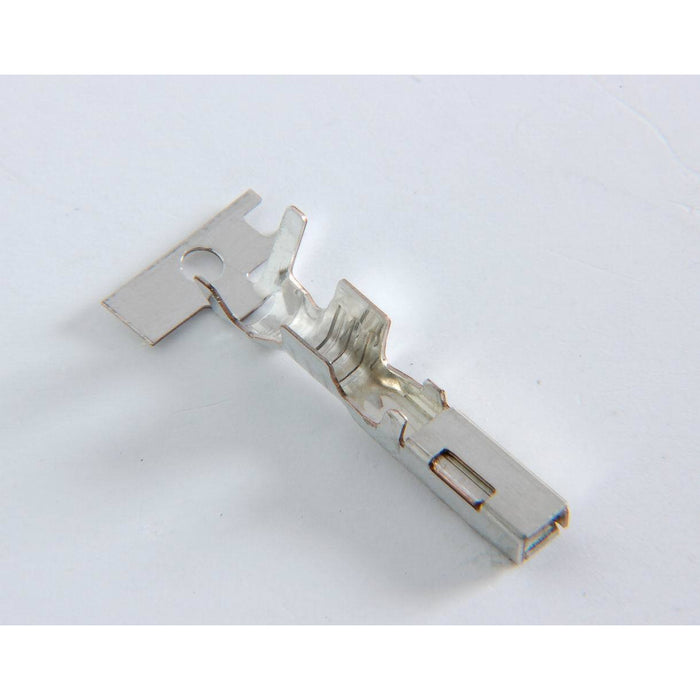

Product Type: Terminal
-
Min Order Qty: 1 reel = 3,000 units
-
Connector ID Part Number: 200074R
-
Brand: Sumitomo Equivalent
-
Drop-in Replacement for Sumitomo Part No.: 8240-4862 and 8100-1427
-
Product Family: HX 090 (2.3) and DL 090 (2.3mm)
-
Wire Size Range: 0.3 -0.5 sqmm
-
Sealed/Unsealed: Sealed
-
Gender: Female
-
Material: Copper Alloy
-
Plating: Tin
- Dimensions: L: 18.0 mm / W: 2.9 mm / H: 2.3 mm / E: 6.9 mm
Associated Wire Seals
200139 Wire Seal, 1.2 - 1.7 mm Wire Insul. Dia., Silicone, Gray
200148 Wire Seal, 1.7 - 2.4 mm Wire Insul. Dia., Silicone, Green
200149 Wire Seal, 2.1 - 2.9 mm Wire Insul. Dia., Silicone, Yellow
200150 Cavity Plug, Silicone, Green
Mating Terminals
200092 Male Term, DL 090, 0.3 - 0.5 sqmm, Tin Plated, Loose Piece
200092R Male Term, DL 090, 0.3 - 0.5 sqmm, Tin Plated, Reel
200094 Male Term, DL 090, 0.75 - 0.85 sqmm, Tin Plated, Loose Piece
200094R Male Term, DL 090, 0.75 - 0.85 sqmm, Tin Plated, Reel
200095 Male Term, DL 090, 2.0 sqmm, Tin Plated, Loose Piece
200095R Male Term, DL 090, 0.85 - 1.25 sqmm, Tin Plated, Reel
